| General Data |
UR |
CN |
EN
Ws |
Size (mm) |
Irms (max.)*
A |
Î *
kA |
Is*
kA |
ESR (1 KHz)*
m |
Rth*
K/W |
Approx. weight
g |
Part number |
| W |
H |
L |
450 VDC |
1440 µF
2400 "
3000 "
4950 "
5000 "
8250 " |
146
243
304
501
506
835 |
84
84
107
130
107
130 |
66
66
91
114
91
114 |
179
291
179
179
291
291 |
100
170
120
140
190
210 |
4.6
7.7
6.7
8.7
11.1
14.5 |
18.6
30.9
26.7
34.9
44.5
58.1 |
0.3
0.2
0.3
0.3
0.2
0.2 |
2.8
1.8
2.0
1.5
1.3
1.1 |
1220
1985
2145
3265
3485
5305 |
DCHCH07144JB00KS00
DCHCH07240JH00KS00
DCHCH07300JC00KS00
DCHCH07495JE00KS00
DCHCH07500JI00KS00
DCHCH07825JJ00KS00 |
| 900 VDC |
450 µF
750 "
940 "
1500 "
1560 "
2600 " |
182
304
381
608
632
1053 |
84
84
107
130
107
130 |
66
66
91
114
91
114 |
179
291
179
179
291
291 |
90
140
100
110
160
180 |
2.2
3.7
2.9
3.5
4.8
6.1 |
8.8
14.6
11.6
14.1
19.3
24.4 |
0.5
0.3
0.5
0.5
0.3
0.3 |
2.8
1.8
2.0
1.5
1.3
1.1 |
1220
1985
2145
3265
3485
5305 |
DCHCN06450JB00KS00
DCHCN06750JH00KS00
DCHCN06940JC00KS00
DCHCN07150JE00KS00
DCHCN07156JI00KS00
DCHCN07260JJ00KS00 |
| 1500 VDC |
140 µF
230 "
280 "
460 "
470 "
790 " |
158
259
315
518
529
889 |
84
84
107
130
107
130 |
66
66
91
114
91
114 |
179
291
179
179
291
291 |
60
100
80
90
130
150 |
1.2
2.0
1.5
1.8
2.5
3.1 |
4.9
8.1
6.1
7.3
10.2
12.5 |
0.9
0.6
0.8
0.8
0.5
0.4 |
2.8
1.8
2.0
1.5
1.3
1.1 |
1220
1985
2145
3265
3485
5305 |
DCHCS06140JB00KS00
DCHCS06230JH00KS00
DCHCS06280JC00KS00
DCHCS06460JE00KS00
DCHCS06470JI00KS00
DCHCS06790JJ00KS00 |
* General guide
 New values and box sizes
Customer-specific tabs, capacitances or voltages on request.

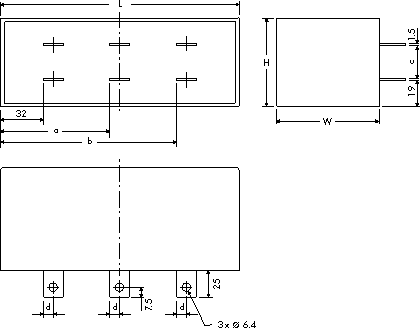

External wiring:
Dims. in mm. Case tolerances: general tolerances in accordance with ISO 2768-1 C (approximate) |
|
| W |
H |
L |
a |
b |
c |
d |
84
107
130 |
66
91
114 |
179
179
179 |
82
82
82 |
132
132
132 |
25
50
73 |
7.5
7.5
7.5 |
84
107
130 |
66
91
114 |
291
291
291 |
135.5
135.5
135.5 |
239
239
239 |
25
50
73 |
10
10
10 |
|
Rights reserved to amend design data without prior notification.
|
|
|
| |
 Page 1
|
|
