Metallized Polypropylene
(PP) Capacitors for Hybrid Drives
Special
Features
Very high volume/capacitance ratio Self-healing, internal safety disconnector

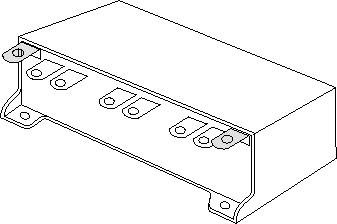

Safe contact configuration by screwable plates
Dry construction without electrolyte or oil
Very low dissipation factor
Negative capacitance change versus
temperature
Very low dielectric absorption According to RoHS 2011/65/EU Customer-specific capacitances or voltages on request
Typical
Applications
As intermediate circuit capacitor e.g. in hybrid drives
Construction
Dielectric:
Polypropylene (PP) film Capacitor electrodes: Vacuum-deposited Internal construction:
Encapsulation:
Solvent-resistant, flame-retardant plastic case
with PU seal, UL 94 V-0 Terminations:
Tinned plates Marking:
Colour:Black. Marking: Gold.
Excessive mechanical strain, e.g. pressure or shock onto the capacitor body, is to be avoided during mounting and usage of the capacitors. When fixing the capacitor the screw torque is to be limited to max. 5 Nm.
Very high volume/capacitance ratio
plates
xµF)
o:
2 x 10-4
