| General Data |
UR |
CN |
D x L
mm |
Irms (1 KHz)*
A |
ESR (1 KHz)*
m |
Rth
K/W |
Le
nH |
Approx. weight
g |
Part number |
700 VDC |
150 µF
200 " |
84.5 x 51
84.5 x 64 |
100
100 |
0.9
1.0 |
7.0
8.5 |
< 32
< 40 |
430
510 |
DCP3K06150G100_ _ _ _
DCP3K06200G200_ _ _ _ |
| 900 VDC |
100 µF
140 " |
84.5 x 51
84.5 x 64 |
90
100 |
1.0
1.3 |
7.2
8.5 |
< 30
< 40 |
430
510 |
DCP3N06100G100_ _ _ _
DCP3N06140G200_ _ _ _ |
| 1100 VDC |
70 µF
90 " |
84.5 x 51
84.5 x 64 |
100
100 |
1.1
1.2 |
7.0
8.5 |
< 32
< 40 |
430
510 |
DCP3P05700G100_ _ _ _
DCP3P05900G200_ _ _ _ |
| 1300 VDC |
50 µF
70 " |
84.5 x 51
84.5 x 64 |
60
50 |
1.7
2.1 |
7.0
8.5 |
< 35
< 40 |
430
510 |
DCP3R25500G100_ _ _ _
DCP3R25700G200_ _ _ _ |
| 1500 VDC |
35 µF
50 " |
84.5 x 51
84.5 x 64 |
60
70 |
1.7
1.9 |
7.0
8.5 |
< 35
< 40 |
430
510 |
DCP3S05350G100_ _ _ _
DCP3S05500G200_ _ _ _ |
| Contacts can handle: |
peak currents Î up to 5 kA
surge currents Is up to 20 kA |
Customer-specific capacitances or voltages on request |
| * General guide. |
| |
|

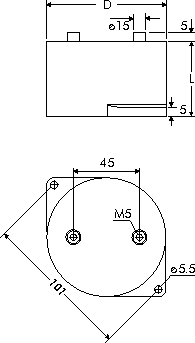

female
|

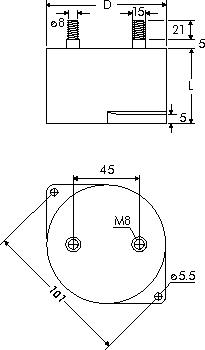

male
|
Dims. in mm. |
| Part number completion: |
| Tolerance: |
20 % = M
10 % = K
5 % = J |
| Packing: |
bulk = S |
| Connection: |
male = 0M
female = 0F |
|
|
 |
 |
| |
|
|
Rights reserved to amend design data
without prior notification. |
|
|
| |
