| General Data |
UR |
CN |
D x L
mm |
Irms (1 KHz)*
A |
ESR (1 KHz)*
m |
Rth
K/W |
Le
nH |
Approx. weight
g |
Part number |
500 VDC |
85 µF
195 "
260 " |
50 x 57
50 x 95
50 x 120 |
35
32
30 |
2.0
3.4
5.2 |
11.0
7.5
6.0 |
< 45
< 65
< 85 |
120
190
220 |
DCP5H15850D000_ _ _ _
DCP5H16195D100_ _ _ _
DCP5H16260D200_ _ _ _ |
| 700 VDC |
59 µF
143 "
190 " |
50 x 57
50 x 95
50 x 120 |
30
32
25 |
1.9
3.5
4.7 |
11.0
7.5
6.0 |
< 45
< 65
< 85 |
120
190
220 |
DCP5K05590D000_ _ _ _
DCP5K06143D100_ _ _ _
DCP5K06190D200_ _ _ _ |
| 900 VDC |
53 µF
114 "
158 " |
50 x 57
50 x 95
50 x 120 |
35
32
30 |
2.3
4.2
6.0 |
11.0
7.5
6.0 |
< 45
< 65
< 85 |
120
190
220 |
DCP5N05530D000_ _ _ _
DCP5N06114D100_ _ _ _
DCP5N06158D200_ _ _ _ |
| 1100 VDC |
30 µF
72 "
100 " |
50 x 57
50 x 95
50 x 120 |
20
25
25 |
2.8
4.5
6.1 |
11.0
7.5
6.0 |
< 45
< 65
< 85 |
120
190
220 |
DCP5P05300D000_ _ _ _
DCP5P05720D100_ _ _ _
DCP5P06100D200_ _ _ _ |
| 1300 VDC |
16 µF
40 "
55 " |
50 x 57
50 x 95
50 x 120 |
20
25
25 |
3.0
5.7
7.7 |
11.0
7.5
6.0 |
< 45
< 65
< 85 |
120
190
220 |
DCP5R25160D000_ _ _ _
DCP5R25400D100_ _ _ _
DCP5R25550D200_ _ _ _ |
| Contacts can handle: |
peak currents Î up to 1.1 kA
surge currents Is up to 3.5 kA |
Customer-specific capacitances or voltages on request |
| * General guide. |
| |
|
 |

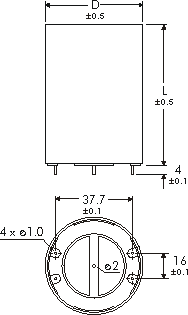

Dims. in mm |
| Part number completion: |
| Tolerance: |
20 % = M
10 % = K
5 % = J |
| Packing: |
bulk = S |
| Pin length: |
none = 00 |
|
|
| |
|
|
Rights reserved to amend design data
without prior notification. |
|
|
| |
 Page 1
|
|
