UR |
CN |
D x L
mm |
Irms (1 KHz)*
A |
ESR (1 KHz)*
m |
Le
nH |
Approx. weight
g |
Part number |
600 VDC |
320 µF
460 "
520 "
620 "
760 "
780 "
950 "
1030 "
1220 "
1500 "
1640 "
1890 "
2030 " |
85 x 60
85 x 76
85 x 85
85 x 95
85 x 110
85 x 120
85 x 132
85 x 140
116 x 95
116 x 110
116 x 120
116 x 132
116 x 140 |
25
25
30
30
30
30
35
35
40
40
40
40
40
|
2.1
2.1
2.0
1.9
1.7
1.7
1.8
1.8
1.7
1.7
1.6
1.6
1.6 |
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70 |
380
480
540
600
690
700
850
880
1200
1390
1510
1660
1760 |
DCP6I06320EB00_ _ _ _
DCP6I06460EC00_ _ _ _
DCP6I06520ED00_ _ _ _
DCP6I06620EE00_ _ _ _
DCP6I06760EF00_ _ _ _
DCP6I06780E000_ _ _ _
DCP6I06950E100_ _ _ _
DCP6I07103EG00_ _ _ _
DCP6I07122EN00_ _ _ _
DCP6I07150EO00_ _ _ _
DCP6I07164EP00_ _ _ _
DCP6I07189EQ00_ _ _ _
DCP6I07203ER00_ _ _ _ |
| 700 VDC |
230 µF
330 "
380 "
450 "
550 "
585 "
690 "
740 "
890 "
1090 "
1190 "
1370 "
1470 " |
85 x 60
85 x 76
85 x 85
85 x 95
85 x 110
85 x 120
85 x 132
85 x 140
116 x 95
116 x 110
116 x 120
116 x 132
116 x 140 |
25
25
30
30
30
30
35
35
40
40
40
40
40 |
1.9
1.9
1.7
1.7
1.8
1.8
1.8
1.8
1.7
1.7
1.8
1.8
1.8 |
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70 |
380
480
540
600
690
700
850
880
1200
1390
1510
1660
1760 |
DCP6K06230EB00_ _ _ _
DCP6K06330EC00_ _ _ _
DCP6K06380ED00_ _ _ _
DCP6K06450EE00_ _ _ _
DCP6K06550EF00_ _ _ _
DCP6K06585E000_ _ _ _
DCP6K06690E100_ _ _ _
DCP6K06704EG00_ _ _ _
DCP6K06890EN00_ _ _ _
DCP6K07109EO00_ _ _ _
DCP6K07119EP00_ _ _ _
DCP6K07137EQ00_ _ _ _
DCP6K07147ER00_ _ _ _ |
| 900 VDC |
190 µF
270 "
315 "
360 "
450 "
480 "
550 "
620 "
730 "
900 "
980 "
1130 "
1200 " |
85 x 60
85 x 76
85 x 85
85 x 95
85 x 110
85 x 120
85 x 132
85 x 140
116 x 95
116 x 110
116 x 120
116 x 132
116 x 140 |
30
30
30
30
30
35
35
35
40
40
40
40
40 |
1.9
1.9
1.8
1.7
1.7
1.8
1.8
1.8
1.7
1.7
1.8
1.8
1.8 |
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70 |
380
480
540
600
690
700
850
880
1200
1390
1510
1660
1760 |
DCP6N06190EB00_ _ _ _
DCP6N06270EC00_ _ _ _
DCP6N06315ED00_ _ _ _
DCP6N06360EE00_ _ _ _
DCP6N06450EF00_ _ _ _
DCP6N06480E000_ _ _ _
DCP6N06550E100_ _ _ _
DCP6N06620EG00_ _ _ _
DCP6N06730EN00_ _ _ _
DCP6N06900EO00_ _ _ _
DCP6N06980EP00_ _ _ _
DCP6N07113EQ00_ _ _ _
DCP6N07120ER00_ _ _ _ |
| 1100 VDC |
120 µF
170 "
200 "
230 "
290 "
325 "
360 "
390 "
470 "
580 "
630 "
720 "
780 " |
85 x 60
85 x 76
85 x 85
85 x 95
85 x 110
85 x 120
85 x 132
85 x 140
116 x 95
116 x 110
116 x 120
116 x 132
116 x 140 |
30
30
30
30
30
40
40
40
40
40
40
40
40 |
2.0
2.0
1.9
1.9
1.8
1.8
1.8
2.0
1.8
1.8
1.7
1.7
1.6 |
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70 |
380
480
540
600
690
700
850
880
1200
1390
1510
1660
1760 |
DCP6P06120EB00_ _ _ _
DCP6P06170EC00_ _ _ _
DCP6P06200ED00_ _ _ _
DCP6P06230EE00_ _ _ _
DCP6P06290EF00_ _ _ _
DCP6P06325E000_ _ _ _
DCP6P06360E100_ _ _ _
DCP6P06390EG00_ _ _ _
DCP6P06470EN00_ _ _ _
DCP6P06580EO00_ _ _ _
DCP6P06630EP00_ _ _ _
DCP6P06720EQ00_ _ _ _
DCP6P06780ER00_ _ _ _ |
| 1300 VDC |
85 µF
120 "
135 "
160 "
200 "
215 "
250 "
270 "
320 "
390 "
430 "
490 "
530 " |
85 x 60
85 x 76
85 x 85
85 x 95
85 x 110
85 x 120
85 x 132
85 x 140
116 x 95
116 x 110
116 x 120
116 x 132
116 x 140 |
30
30
30
30
30
30
40
40
40
40
40
40
40 |
2.1
2.1
1.9
1.9
1.8
1.8
2.2
2.2
1.8
1.8
1.7
1.7
1.6 |
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70 |
380
480
540
600
690
700
850
880
1200
1390
1510
1660
1760 |
DCP6R25850EB00_ _ _ _
DCP6R26120EC00_ _ _ _
DCP6R26135ED00_ _ _ _
DCP6R26160EE00_ _ _ _
DCP6R26200EF00_ _ _ _
DCP6R26215E000_ _ _ _
DCP6R26250E100_ _ _ _
DCP6R26270EG00_ _ _ _
DCP6R26320EN00_ _ _ _
DCP6R26390EO00_ _ _ _
DCP6R26430EP00_ _ _ _
DCP6R26490EQ00_ _ _ _
DCP6R26530ER00_ _ _ _ |
| 1500 VDC |
75 µF
110 "
120 "
145 "
180 "
195 "
225 "
240 "
290 "
355 "
390 "
445 "
480 " |
85 x 60
85 x 76
85 x 85
85 x 95
85 x 110
85 x 120
85 x 132
85 x 140
116 x 95
116 x 110
116 x 120
116 x 132
116 x 140 |
25
25
25
30
30
40
40
40
40
40
40
40
40 |
2.5
2.5
2.3
2.3
2.3
2.4
2.4
2.5
1.8
1.8
1.7
1.7
1.7 |
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70
< 70 |
380
480
540
600
690
700
850
880
1200
1390
1510
1660
1760 |
DCP6S05750EB00_ _ _ _
DCP6S06110EC00_ _ _ _
DCP6S06120ED00_ _ _ _
DCP6S06145EE00_ _ _ _
DCP6S06180EF00_ _ _ _
DCP6S06195E000_ _ _ _
DCP6S06225E100_ _ _ _
DCP6S06240EG00_ _ _ _
DCP6S06290EN00_ _ _ _
DCP6S06355EO00_ _ _ _
DCP6S06390EP00_ _ _ _
DCP6S06445EQ00_ _ _ _
DCP6S06480ER00_ _ _ _ |
| Contacts can handle: |
peak currents Î up to 5 kA
surge currents Is up to 20 kA |
Customer-specific capacitances or voltages on request |
| * General guide. |
| |
|

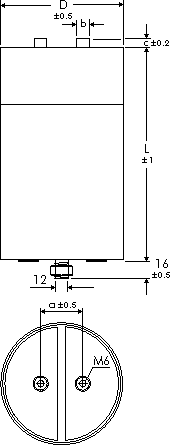

female
|
male
|
| D |
L |
a |
b |
c |
85
85
85
85
85
85
85
85
116
116
116
116
116 |
60
76
85
95
110
120
132
140
95
110
120
132
140 |
32
32
32
32
32
32
32
32
50
50
50
50
50 |
12
12
12
12
12
12
12
12
14
14
14
14
14 |
6
6
6
6
6
6
6
6
5
5
5
5
5 |
Dims. in mm. |
| Part number completion: |
| Tolerance: |
20 % = M
10 % = K
5 % = J |
| Packing: |
bulk = S |
| Connection: |
male = 0M
female = 0F |
|
|
 |
 |
| |
|
|
Rights reserved to amend design data
without prior notification. |
|
