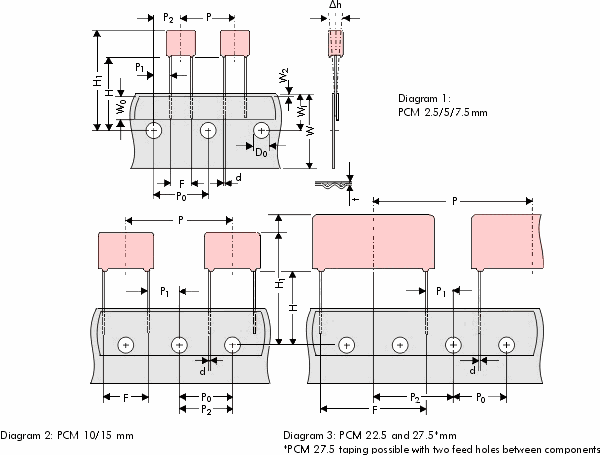

Dimensions for
radial insertion |
Designation |
Symbol |
PCM 2.5 |
PCM 5 |
PCM 7.5 |
PCM 10** |
PCM 15** |
PCM 22.5 |
PCM 27.5 |
Carrier tape width |
W |
18.0±0.5 |
18.0±0.5 |
18.0±0.5 |
18.0±0.5 |
18.0±0.5 |
18.0±0.5 |
18.0±0.5 |
Hold-down tape width |
W0 |
6.0 for hot-sealing adhesive tape |
6.0 for hot-sealing adhesive tape |
12.0 for hot-sealing adhesive tape |
12.0 for hot-sealing adhesive tape |
12.0 for hot-sealing adhesive tape |
12.0 for hot-sealing adhesive tape |
12.0 for hot-sealing adhesive tape |
Hole position |
W1 |
9.0±0.5 |
9.0±0.5 |
9.0±0.5 |
9.0±0.5 |
9.0±0.5 |
9.0±0.5 |
9.0±0.5 |
Hold-down tape position |
W2 |
0.5 to 3.0 max. |
0.5 to 3.0 max. |
0.5 to
3.0 max. |
0.5 to 3.0 max. |
0.5 to 3.0 max |
0.5 to 3.0 max. |
0.5 to
3.0 max. |
Feed hole diameter |
D0 |
4.0±0.2 |
4.0±0.2 |
4.0±0.2 |
4.0±0.2 |
4.0±0.2 |
4.0±0.2 |
4.0±0.2 |
Pitch of component |
P |
12.7±1.0 |
12.7±1.0 |
12.7±1.0 |
25.4±1.0 |
25.4±1.0 |
38.1±1.5 |
*38.1±1.5 or 50.8±1.5 |
Feed hole pitch |
P0 |
12.7±0.3 cumulative pitch error max.
1.0mm/20pitch |
12.7±0.3 cumulative pitch error max.
1.0mm/20pitch |
12.7±0.3 cumulative pitch error max.
1.0mm/20pitch |
12.7±0.3 cumulative pitch error max.
1.0mm/20pitch |
12.7±0.3 cumulative pitch error max.
1.0mm/20pitch |
12.7±0.3 cumulative pitch error max.
1.0mm/20pitch |
12.7±0.3 cumulative pitch error max.
1.0mm/20pitch |
Feed hole centre to pin |
P1 |
5.1±0.5 |
3.85±0.7 |
2.6±0.7 |
7.7±0.7 |
5.2±0.7 |
7.8±0.7 |
5.3±0.7 |
Hole centre to component
centre |
P2 |
6.35±1.3 |
6.35±1.3 |
6.35±1.3 |
12.7±1.3 |
12.7±1.3 |
19.05±1.3 |
19.05±1.3 |
Feed hole centre to bottom edge of
the component |
H |
16.5±0.3 |
16.5±0.3 |
16.5±0.3 |
16.5±0.3 |
16.5±0.3 |
16.5±0.3 |
16.5±0.3 |
18.5±0.5 |
18.5±0.5 |
18.5±0.5 |
18.5±0.5 |
18.5±0.5 |
18.5±0.5 |
18.5±0.5 |
Feed hole centre to top
edge of the component |
H1 |
H+Hcomponent < H1 32.25 max. |
H+Hcomponent < H1 32.25 max. |
H+Hcomponent < H1 24.25 to 31.5 |
H+Hcomponent < H1 25.0 to 31.5. |
H+Hcomponent < H1 26.0 to 37.0 |
H+Hcomponent < H1 30.0 to 43.0 |
H+Hcomponent < H1 35.0 to 45.0 |
Pin spacing |
F |
2.5±0.5 |
5+0.8/-0.2 |
7.5±0.8 |
10.0±0.8 |
15.0±0.8 |
22.5±0.8 |
27.5±0.8 |
Pin diameter |
d |
0.4±0.05 |
0.5±0.05 |
*0.5±0.05 or 0.6+0.06/-0.05 |
*0.5±0.05 or 0.6+0.06/-0.05 |
0.8+0.08/-0.05 |
0.8+0.08/-0.05 |
0.8+0.08/-0.05 |
Component alignment |
h |
±2.0 max. |
±2.0 max. |
±3.0 max. |
±3.0 max. |
±3.0 max. |
±3.0 max. |
±3.0 max. |
Total tape thickness |
t |
0.7±0.2 |
0.7±0.2 |
0.7±0.2 |
0.7±0.2 |
0.7±0.2 |
0.7±0.2 |
0.7±0.2 |
Package |
|
ROLL
/ AMMO / REEL |
AMMO
/ REEL |
**Diameter of pins see General Data.
**PCM
10 and PCM 15 can be crimped to PCM 7.5 mm.
**Position
of components according to PCM 7.5 (sketch 1). P0 = 12.7 or 15.0 is possible.
Dims. in mm. |
Minimum
packing units for capacitors with radial pins |
