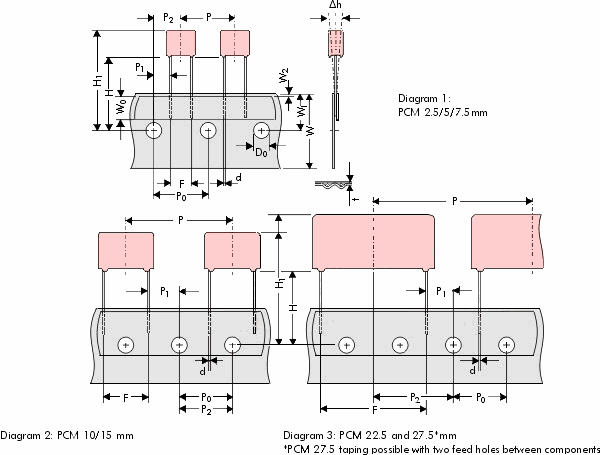

Dimensions for radial
insertion |
| Designation |
Symbol |
PCM
2.5 |
PCM
5 |
PCM
7.5 |
PCM
10** |
PCM
15** |
PCM
22.5 |
PCM
27.5 |
| Carrier tape
width |
W |
18.0±0.5 |
18.0±0.5 |
18.0±0.5 |
18.0±0.5 |
18.0±0.5 |
18.0±0.5 |
18.0±0.5 |
| Hold-down tape
width |
W0 |
6.0 for hot-sealing
adhesive tape |
6.0 for hot-sealing
adhesive tape |
12.0 for hot-sealing
adhesive tape |
12.0 for hot-sealing
adhesive tape |
12.0 for hot-sealing
adhesive tape |
12.0 for hot-sealing
adhesive tape |
12.0 for hot-sealing
adhesive tape |
| Hole position |
W1 |
9.0±0.5 |
9.0±0.5 |
9.0±0.5 |
9.0±0.5 |
9.0±0.5 |
9.0±0.5 |
9.0±0.5 |
| Hold-down tape
position |
W2 |
0.5 to 3.0 max. |
0.5 to 3.0 max. |
0.5 to 3.0 max. |
0.5 to 3.0 max. |
0.5 to 3.0 max |
0.5 to 3.0 max. |
0.5 to 3.0 max. |
| Feed hole
diameter |
D0 |
4.0±0.2 |
4.0±0.2 |
4.0±0.2 |
4.0±0.2 |
4.0±0.2 |
4.0±0.2 |
4.0±0.2 |
| Pitch of
component |
P |
12.7±1.0 |
12.7±1.0 |
12.7±1.0 |
25.4±1.0 |
25.4±1.0 |
38.1±1.5 |
*38.1±1.5 or 50.8±1.5 |
| Feed hole
pitch |
P0 |
12.7±0.3 cumulative pitch error max.
1.0mm/20pitch |
12.7±0.3 cumulative pitch error max.
1.0mm/20pitch |
12.7±0.3 cumulative pitch error max.
1.0mm/20pitch |
12.7±0.3 cumulative pitch error max.
1.0mm/20pitch |
12.7±0.3 cumulative pitch error max.
1.0mm/20pitch |
12.7±0.3 cumulative pitch error max.
1.0mm/20pitch |
12.7±0.3 cumulative pitch error max.
1.0mm/20pitch |
| Feed hole centre to
lead |
P1 |
5.1±0.5 |
3.85±0.7 |
2.6±0.7 |
7.7±0.7 |
5.2±0.7 |
7.8±0.7 |
5.3±0.7 |
| Hole centre to
component centre |
P2 |
6.35±1.3 |
6.35±1.3 |
6.35±1.3 |
12.7±1.3 |
12.7±1.3 |
19.05±1.3 |
19.05±1.3 |
| Feed hole
centre to bottom edge of the component |
H** |
16.5±0.3 |
16.5±0.3 |
16.5±0.3 |
16.5±0.3 |
16.5±0.3 |
16.5±0.3 |
16.5±0.3 |
| 18.5±0.5 |
18.5±0.5 |
18.5±0.5 |
18.5±0.5 |
18.5±0.5 |
18.5±0.5 |
18.5±0.5 |
| Feed hole centre to top
edge of the component |
H1 |
H+Hcomponent < H1
32.25 max. |
H+Hcomponent < H1
32.25 max. |
H+Hcomponent < H1
24.25 to 31.5 |
H+Hcomponent < H1
25.0 to 31.5. |
H+Hcomponent < H1
26.0 to 37.0 |
H+Hcomponent < H1
30.0 to 43.0 |
H+Hcomponent < H1
35.0 to 45.0 |
| Lead spacing |
F |
2.5±0.5 |
5+0.8/-0.2 |
7.5±0.8 |
10.0±0.8 |
15.0±0.8 |
22.5±0.8 |
27.5±0.8 |
| Lead diameter |
d |
0.4±0.05 |
0.5±0.05 |
*0.5±0.05 or 0.6+0.06/-0.05 |
*0.5±0.05 or 0.6+0.06/-0.05 |
0.8+0.08/-0.05 |
0.8+0.08/-0.05 |
0.8+0.08/-0.05 |
| Component
alignment |
 h |
±2.0 max. |
±2.0
max. |
±3.0 max. |
±3.0 max. |
±3.0 max. |
±3.0 max. |
±3.0 max. |
| Total tape
thickness |
t |
0.7±0.2 |
0.7±0.2 |
0.7±0.2 |
0.7±0.2 |
0.7±0.2 |
0.7±0.2 |
0.7±0.2 |
| Package |
** |
ROLL / AMMO /
REEL |
AMMO / REEL |
**Please
give "H" dimension and desired packaging type when
ordering.
**Diameter of leads
see General Data.
**PCM 10 and PCM
15 can be crimped to PCM 7.5 mm.
**Position of components according to PCM 7.5
(sketch 1). P0 = 12.7 or 15.0
is possible.
Dims. in mm. |
