| Polypropylene (PP)
Capacitors for Pulse Applications with
Double-Sided Metallized Electrodes and Schoopage
Contacts in
PCM 7.5 mm to 52.5 mm |
|
| |
| Special
Features |
 Pulse
duty construction
Self-healing
Very low dissipation factor
Negative capacitance change versus
 temperature
According to RoHS 2011/65/EU |
| Typical
Applications |
For pulse
applications e.g.
Switch mode power supplies
TV and monitor sets
Lighting
Audio/video equipment |
| Construction |
Dielectric:
Polypropylene (PP) film
Capacitor electrodes:
Double-sided metallized plastic film

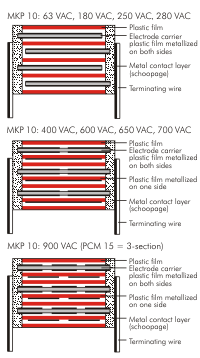

Internal construction: |
 |
Encapsulation:
Solvent-resistant, flame retardent plastic case
with epoxy resin seal, UL 94 V-0
Terminations:
Tinned wire
Marking:
Colour: Red. Marking: Black. Epoxy resin seal:
Red. |
|
|
| Electrical Data |
Capacitance
range:
1000 pF to 47 µF (E12-values on request)
Rated voltages:
100VDC, 250VDC, 400VDC, 630VDC,
1000VDC, 1600VDC, 2000VDC, 2500VDC, 3000VDC
Capacitance tolerances:
±20%, ±10%, ±5%
Operating temperature range:
-55°C to +100°C
Climatic test category:
55/100/56 in accordance with IEC
Insulation resistance at +20°C:
C < 0.33 µF: > 1 x
105 M
(mean value: 5 x 105 M)
C > 0.33 µF: > 30000 sec (MxµF)
(mean value: 100000 sec)
Measuring voltage: 100V/1 min.
Test
voltage: 2 sec |
| L |
< 2000VDC |
2500VDC |
> 3000VDC |
< 41.5
41.5
57 |
1.6 Ur
1.4 Ur
1.2 Ur |
1.4 Ur
1.4 Ur
1.2 Ur |
1.2 Ur
1.2 Ur
1.2 Ur |
|
Dissipation factors at
+20°C: tan |
|
|
Dielectric absorption:
0.05%
Voltage derating:
A voltage derating factor of 1.35% per K
must be applied from +85°C for DC
voltages and from +75°C for AC voltages.
Reliability:
Operational life > 300000
hours
Failure rate < 1 fit (0.5 x Ur and 40°C)
Specific dissipation: |
Box size
W x H x L
in mm |
Specific dissipation
in Watts per K above the
ambient temperature |
35x50x57
45x55x57
45x65x57 |
0.132
0.164
0.184 |
|
* other box sizes
Graphs:
Soldering: |
|
| at f |
C < 0.1
µF |
0.1 µF < C < 1.0 µF |
C > 1.0 µF |
1kHz
10kHz
100kHz |
< 3 x 10-4
< 4 x 10-4
< 15 x 10-4 |
< 3 x 10-4
< 6 x 10-4
- |
< 3 x 10-4
-
- |
|
| Maximum
pulse rise time: for pulses equal to the
rated voltage |
Capacitance
pF/µF |
max. pulse rise
time V/µsec at TA < 40°C |
| 100VDC |
250VDC |
400VDC |
630VDC |
1000VDC |
1600VDC |
2000VDC |
2500VDC |
3000VDC |
1000...2200
3300...6800
0.01 ...0.022
0.033...0.068
0.1...0.22
0.33...0.68
1.0...2.2
3.3...4.7
6.8...15
22...47 |
1250
1150
900
500
250
130
90
65
45
30 |
2300
1500
1400
1000
650
390
250
100
65
45 |
2300
1500
1500
1150
650
500
250
130
90
45 |
2300
1500
1500
1400
1150
900
500
190
160
- |
3500
3500
2700
2700
1800
1150
500
230
-
- |
7000
7000
3800
2700
1800
1150
650
330
-
- |
11500
11500
4400
2700
1800
1150
650
-
-
- |
11500
11500
11500
-
-
-
-
-
-
- |
-
-
-
2700
1800
1150
500
-
-
- |
|
| |
| Mechanical
Tests |
|
Packing |
Pull test on pins:
d < 0.8 Ø: 10 N in direction of pins
d > 0.8 Ø: 20 N in direction of pins
according to IEC 60068-2-21
Vibration:
6 hours at 10...2000Hz and 0.75mm displacement
amplitude or 10g in accordance with IEC 60068-2-6
Low air density:
1kPa = 10 mbar in accordance with IEC 60068-2-13
Bump test:
4000 bumps at 390 m/sec2 in accordance
with IEC 60068-2-29 |
|
Available
taped and reeled up to and including case size
15x26x31.5 / PCM 27.5mm.
Detailed taping information:
Example for ordering / Part
number: |
|
| |
